5 Common Types of CNC Machines Used in Modern Manufacturing

CNC machining refers to the automated control of machining tools (such as drills, lathes, mills, and grinders) using computer programming. CNC stands for Computer Numerical Control, which accurately describes how these machines operate—through numerical codes that direct precise movements.

Unlike conventional machining processes that rely heavily on manual operation, CNC machining minimizes human intervention, resulting in higher precision, consistency, and productivity. The computer-controlled nature of these machines allows for complex cuts and shapes that would be difficult or impossible to achieve manually.

Key Benefits of CNC Machining

• Enhanced precision and accuracy (tolerances as tight as ±0.001 inches)
• Consistent quality across production runs
• Ability to create complex geometries
• Increased production efficiency
• Reduced material waste
• Lower labor costs for high-volume production
• Versatility across various materials (metals, plastics, wood, composites)

CNC milling machines are among the most versatile and widely used CNC machines in modern manufacturing. These powerful machines use rotary cutters to remove material from a workpiece, creating custom parts with exceptional precision.

How CNC Mills Work

CNC mills operate by rotating a cutting tool while moving it along multiple axes. The most basic mills move along three axes (X, Y, and Z), allowing for three-dimensional cutting. More advanced mills can operate on 4 or 5 axes, enabling the creation of even more complex geometries with undercuts and intricate features.

Types of CNC Mills:

• 3-Axis Mills: Move along X, Y, and Z axes, ideal for simpler parts
• 4-Axis Mills: Add rotation around the X-axis, allowing for more complex features
• 5-Axis Mills: Provide complete access to all sides of a part in a single setup
• Vertical Machining Centers (VMCs): Feature vertical spindles for general-purpose milling
• Horizontal Machining Centers (HMCs): Use horizontal spindles for better chip evacuation and heavier cuts

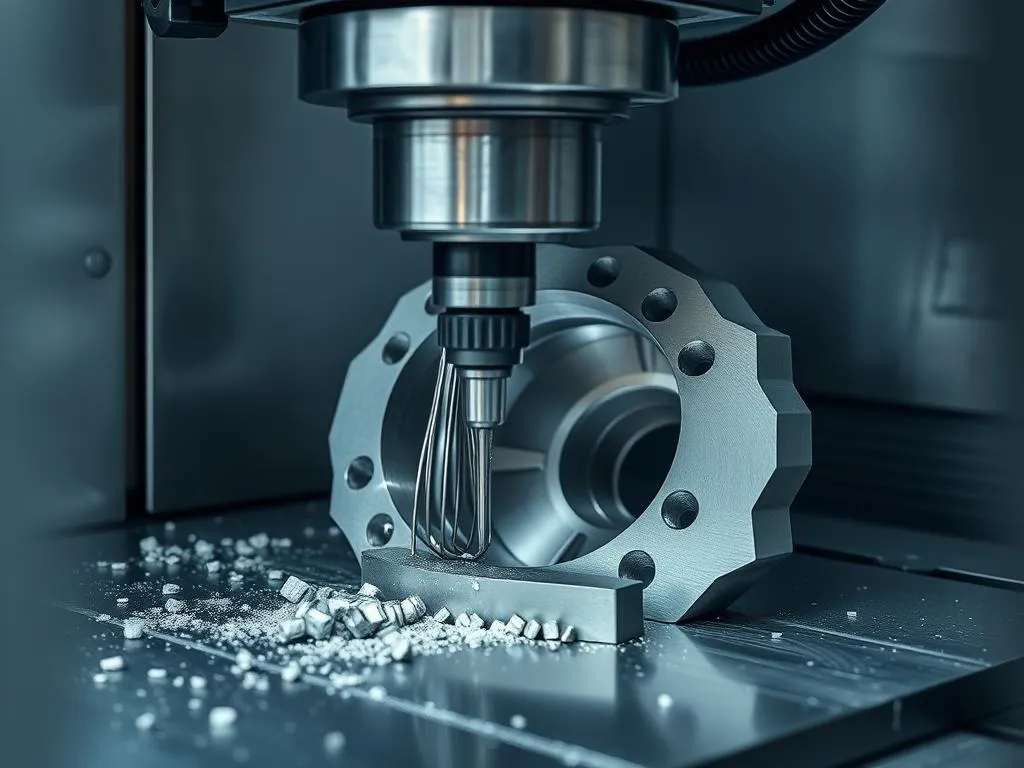

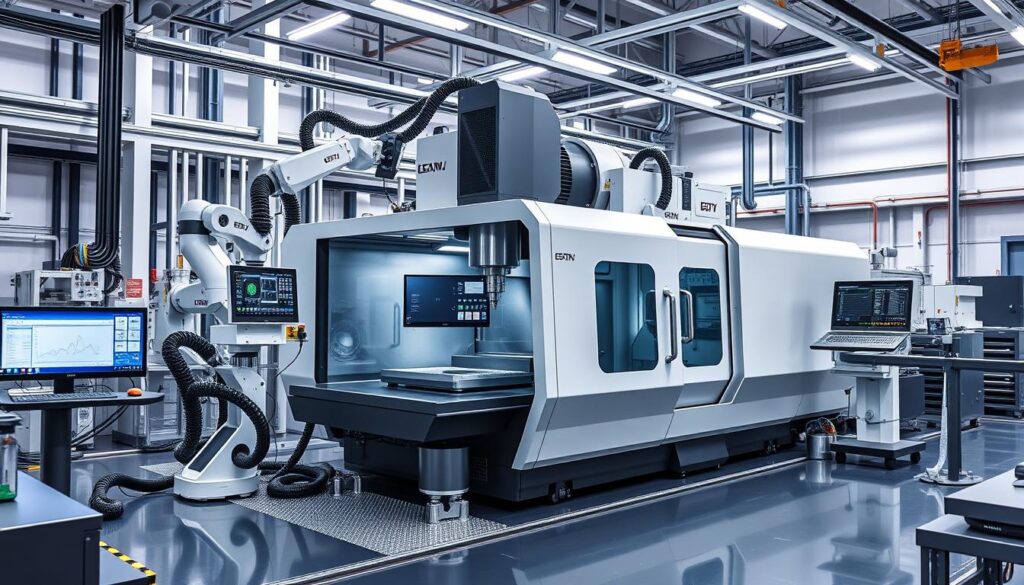

5-axis CNC mill creating a complex aluminum component

Common Applications of CNC Mills:

• Aerospace components (structural parts, engine components)
• Automotive parts (engine blocks, transmission cases)
• Medical devices (implants, surgical instruments)
• Mold and die making
• Electronics housings and components
• Custom machinery parts

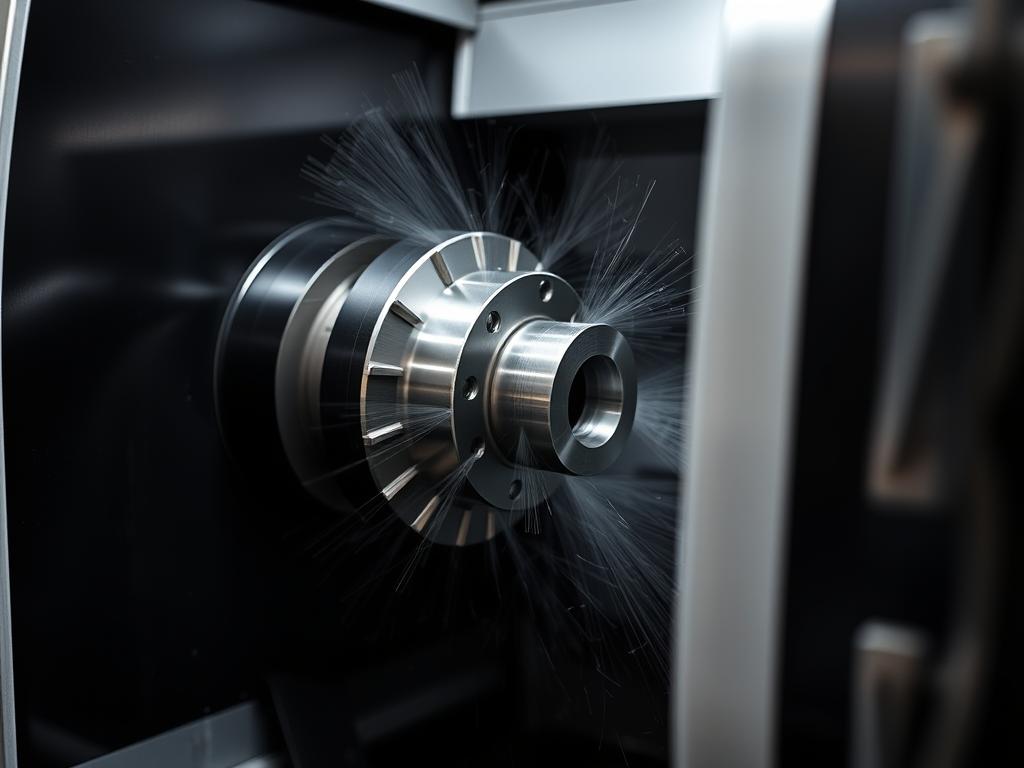

CNC lathe performing precision turning operations on a metal shaft

Common Applications of CNC Lathes:

• Shafts and axles for automotive and machinery
• Precision screws and fasteners
• Bearing components
• Gun barrels and firearm components
• Medical device components
• Custom fittings and connectors

CNC lathes, also known as CNC turning centers, specialize in creating cylindrical parts with exceptional precision. Unlike mills that use rotating cutting tools on stationary workpieces, lathes rotate the workpiece against stationary cutting tools.

How CNC Lathes Work

In CNC turning operations, the workpiece is secured in a chuck that rotates at high speeds. Cutting tools mounted on a turret move along the X and Z axes to remove material and create the desired shape. This process is ideal for creating cylindrical, conical, and contoured parts with radial symmetry.

Types of CNC Lathes:

• 2-Axis Lathes: Basic turning operations along X and Z axes
• Multi-Axis Lathes: Additional axes for more complex turning operations
• Swiss-Type Lathes: Specialized for small, high-precision parts
• Turn-Mill Centers: Combine turning and milling capabilities

CNC routers are specialized cutting machines designed for working with larger sheets of materials, particularly wood, plastics, composites, and soft metals. They excel at creating intricate designs and patterns across large surface areas.

How CNC Routers Work

Similar to CNC mills, routers use a rotating cutting tool that moves along multiple axes. However, routers typically feature larger work areas and are designed for higher speeds rather than the heavy cutting capabilities of mills. The cutting head moves across a stationary workpiece, removing material to create the programmed design.

Types of CNC Routers:

• 3-Axis Routers: Standard configuration for most applications
• 4-Axis Routers: Add rotational capability for more complex designs
• 5-Axis Routers: Provide maximum flexibility for intricate 3D shapes
• Nesting Routers: Specialized for optimizing material usage

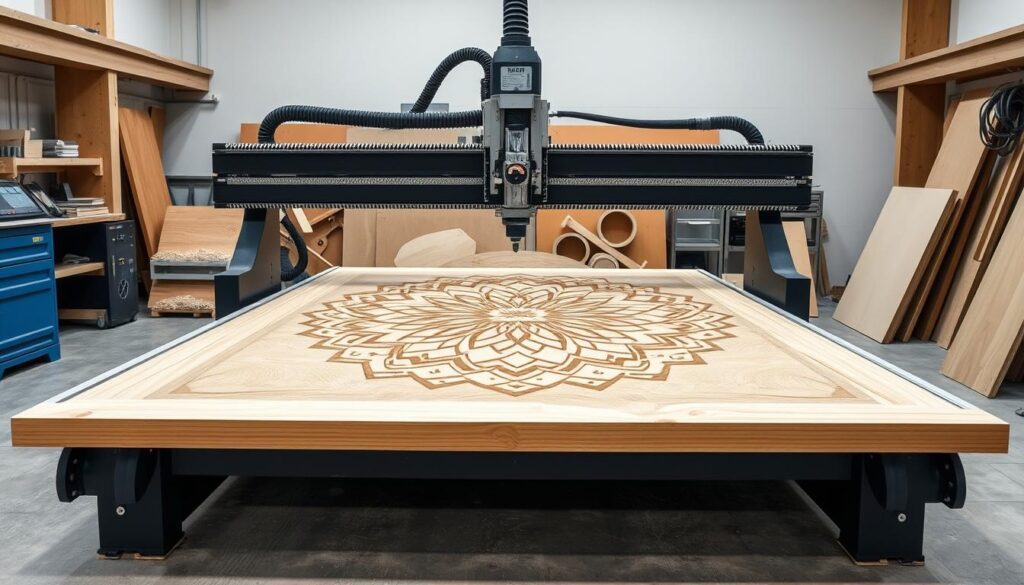

Industrial CNC router creating detailed patterns in a large wooden panel

Common Applications of CNC Routers:

• Cabinetry and furniture manufacturing
• Sign making and artistic carvings
• Architectural elements and moldings
• Aerospace composite components
• Automotive interior panels
• Theatrical sets and displays

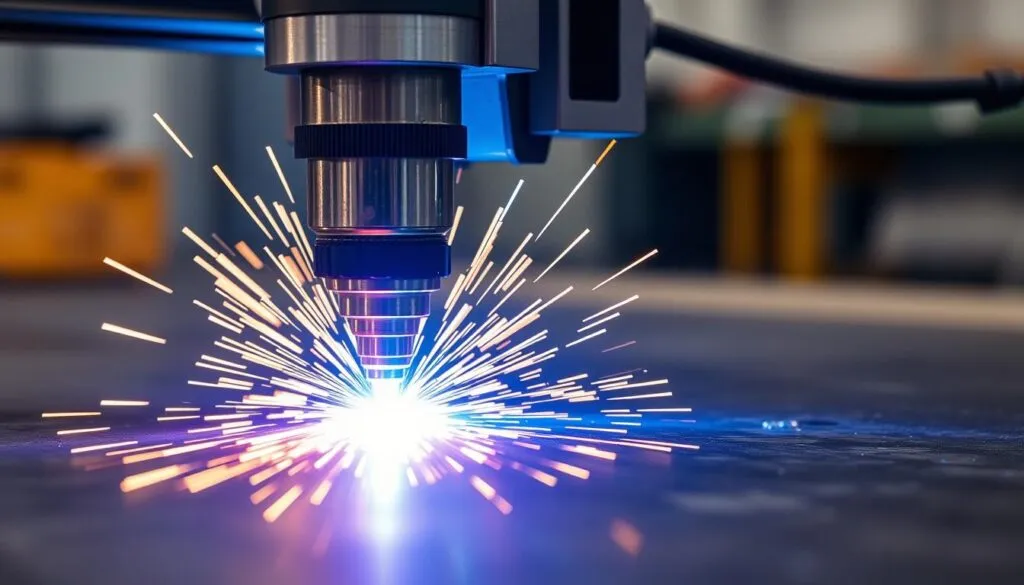

CNC plasma cutter precisely cutting a complex pattern in steel plate

Common Applications of CNC Plasma Cutters:

• Structural steel components for construction
• Custom metal signs and artwork
• HVAC ductwork fabrication
• Automotive body panels and frames
• Industrial equipment components
• Metal furniture and fixtures

CNC plasma cutters use a high-temperature plasma arc to cut through electrically conductive materials, primarily metals. These machines excel at cutting sheet metal and plate materials with exceptional speed and precision.

How CNC Plasma Cutters Work

Plasma cutting works by sending an electric arc through a gas (typically compressed air, nitrogen, or oxygen) that passes through a constricted opening. This creates a plasma jet hot enough (up to 40,000°F) to melt metal and blow the molten material away from the cut. CNC control allows for precise movement of the plasma torch to create complex shapes and patterns.

Types of CNC Plasma Cutters:

• Conventional Plasma Systems: Standard systems for general cutting applications
• High-Definition Plasma: Enhanced precision for detailed cuts
• Water Table Systems: Use water to reduce smoke and capture debris
• Tube and Pipe Cutting Systems: Specialized for cylindrical materials

Electrical Discharge Machining (EDM) is a non-conventional machining process that uses electrical discharges (sparks) to remove material from a workpiece. EDM excels at creating complex shapes in hard, electrically conductive materials with exceptional precision.

How CNC EDM Machines Work

EDM works by creating a series of rapidly recurring electrical discharges between an electrode and the workpiece, both submerged in a dielectric fluid. Each discharge erodes a small amount of material from both the workpiece and electrode. CNC control enables precise positioning and movement, allowing for complex shapes and extremely fine details.

Types of CNC EDM Machines:

• Wire EDM: Uses a thin wire as an electrode to cut through materials
• Sinker EDM (Ram EDM): Uses a shaped electrode to create cavities
• Hole Drilling EDM: Specialized for creating small, deep holes
• Fast Hole EDM: High-speed drilling for aerospace applications

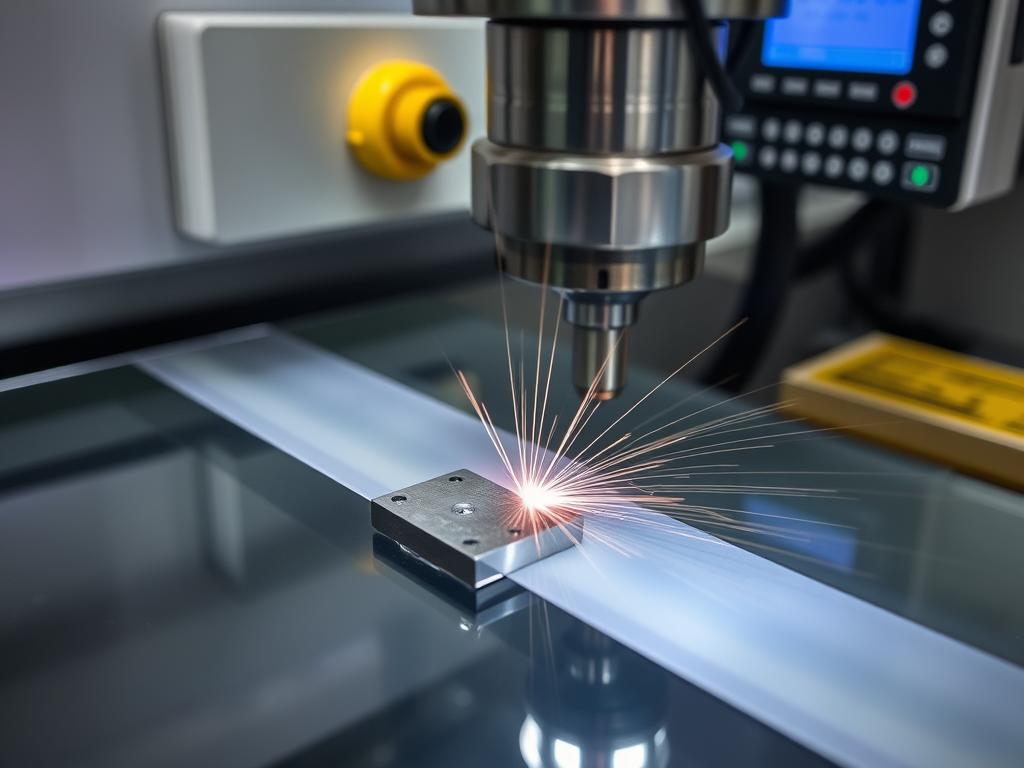

Wire EDM machine creating intricate features in hardened tool steel

Common Applications of CNC EDM Machines:

• Mold and die manufacturing
• Aerospace components requiring complex internal features
• Medical implants and surgical tools
• Micro-components for electronics
• Jewelry and watch components
• Precision gears and splines

Knurling: Adding Functional Texture

Knurling is a specialized machining process typically performed on CNC lathes that creates a diamond-shaped or straight-line pattern on cylindrical surfaces. This textured pattern serves both functional and aesthetic purposes:

• Improves grip on handles, knobs, and tool components
• Creates a decorative pattern on visible parts
• Provides surface area for better adhesion in press-fit applications
• Helps with part identification and branding

CNC machining shops can produce various knurl patterns, including diamond, straight, and diagonal, with different pitches and depths to meet specific requirements.

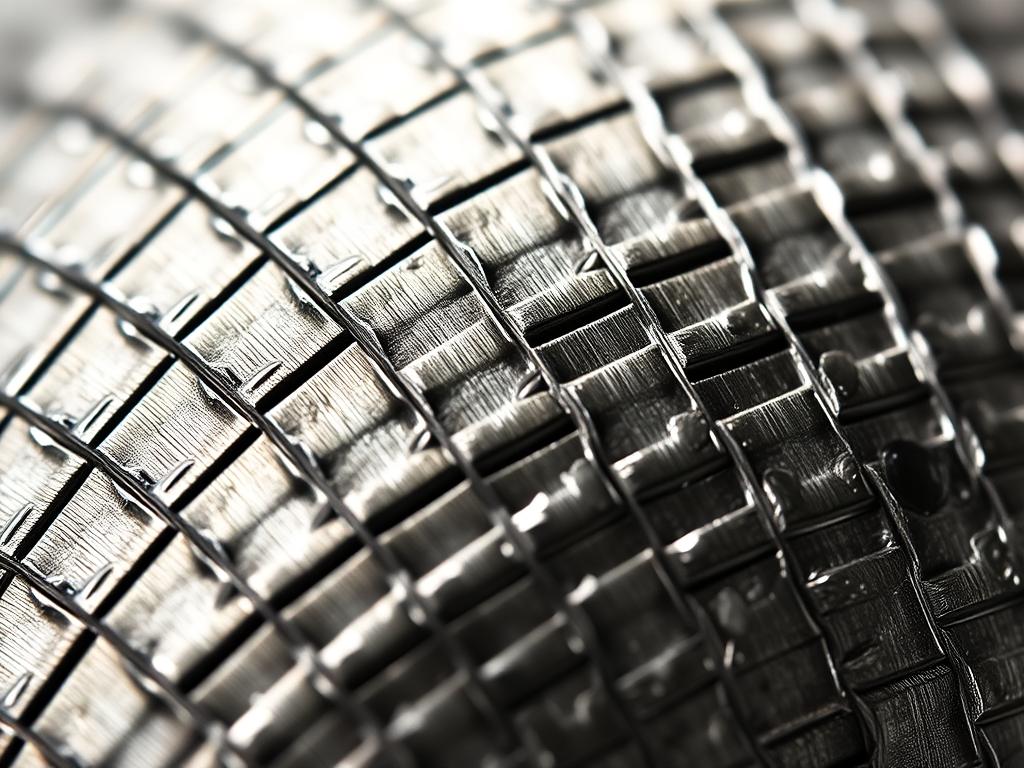

Diamond knurling pattern created through precision CNC turning

Other Specialized CNC Processes

• Multi-axis Machining: Combines multiple cutting approaches in a single setup
• Micro-Machining: Creates extremely small features and components
• Hard Turning: Machining of hardened materials without grinding
• High-Speed Machining: Uses advanced tooling and programming for faster production

• What types of CNC machines do you operate, and what are their capabilities?
• What materials can you machine, and do you maintain stock inventory?
• What tolerances can you consistently achieve?
• What quality certifications does your facility hold?
• How do you handle quality control and inspection?

• What is your typical lead time for prototypes and production runs?
• Do you offer design assistance or DFM feedback?
• What finishing options do you provide in-house?
• Can you handle assembly or secondary operations?
• What industries do you primarily serve, and can you provide references?

CNC machining continues to evolve with advancements in technology, materials, and manufacturing processes. The integration of artificial intelligence, machine learning, and automation is transforming CNC machining services, making them more efficient, precise, and accessible than ever before.

As manufacturing demands grow more complex, the five common types of CNC machines we’ve explored—mills, lathes, routers, plasma cutters, and EDM machines—will remain fundamental to modern production while incorporating new capabilities and features.

Whether you’re producing prototypes, small batches, or large production runs, understanding these CNC machine types and their applications will help you make informed decisions about your manufacturing needs and select the right CNC machining service for your specific requirements.
