In this blog, we will dive into the critical role of proper racking during anodizing and showcase real-world examples from our CNC machining service to explain why a well-thought-out racking position is essential for stunning results.

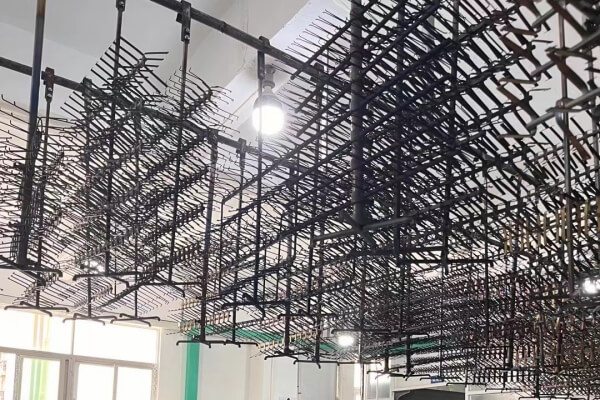

Why Racking Matters in Anodizing Aluminum
Anodizing aluminum is a key process in CNC machining to create durable, corrosion-resistant, and visually appealing parts. Without proper racking, aluminum components, especially those produced through precise CNC milling machining, can suffer from various imperfections. These can range from uneven coating and trapped air bubbles to unsightly scratches and deformities. The primary reason a dedicated racking position is crucial is to ensure consistent electrical contact and allow for the uniform flow of the anodizing solution. By using customized anodizing racks, we can avoid defects like scratches or deformation, ensuring the final product looks polished and professional. In this blog, we explore real-world cases of aluminum boxes, cups, and plates, showing how tailored racking solutions improve the anodized aluminum finish in CNC milling machining.
The Role of Stability in Anodizing
Stability during anodizing is critical to avoid shaking or movement, which can cause scratches or uneven coating. A well-designed racking system holds the part securely, ensuring a smooth, flawless anodized finish. For example, unstable racking can lead to deep scratches, while proper support minimizes defects.
Avoiding Scratches and Marks
Improper racking can leave visible marks or scratches on anodized aluminum, ruining its appearance. Customized anodizing racks, designed for specific parts, reduce contact points and prevent damage. This ensures the CNC-machined part retains its sleek, professional look after anodizing.
Custom Anodizing Racks for Aluminum Boxes
For aluminum boxes, achieving a flawless anodized finish requires careful racking. We developed a customized internal support anodizing rack to hold the box by its inner walls during anodizing. This approach prevents external damage and ensures a uniform coating. Our tests showed significant differences between using two versus four support positions, highlighting the importance of stability in CNC milling machining for anodized aluminum boxes.
Testing 2 vs. 4 Support Positions

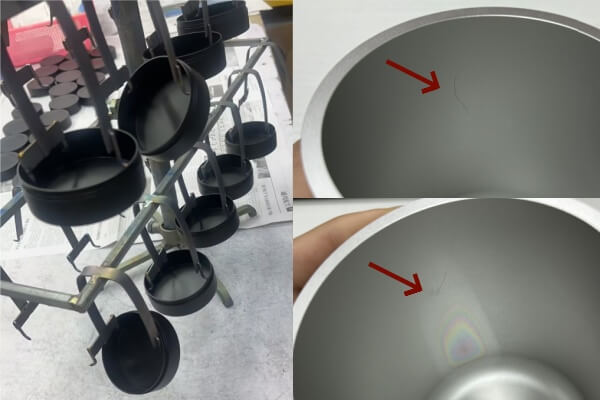

Initially, we used an anodizing rack with two internal support positions for an aluminum box. The setup lacked stability, causing the box to shake during anodizing. This led to long, deep scratches inside and air trapped in the coating, ruining the finish. Switching to a four-position anodizing rack solved these issues, stabilizing the box and leaving only four small white spots inside after anodizing rack removal. These minor marks were barely noticeable, making the anodized aluminum box look stunning.
Benefits of Internal Support Racks

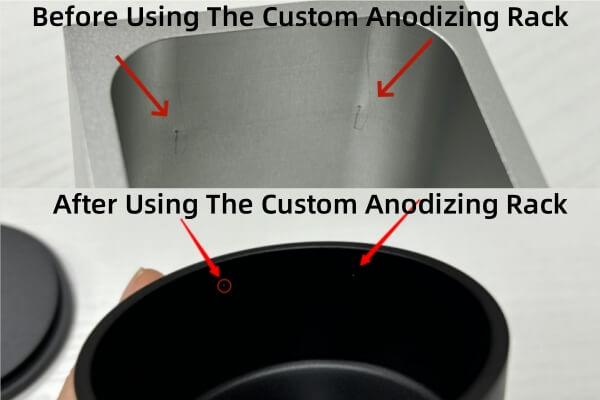

Using a four-position internal support rack ensures the aluminum box remains steady during anodizing, preventing scratches and uneven coating. After the anodizing process and anodizing rack removal, only four small white spots were left inside the box, a vast improvement that made the anodized aluminum box look significantly more beautiful and met our clients’ stringent quality expectations.
Racking Solutions for Aluminum Cups
Aluminum cups, especially heavier ones, require unique racking solutions to avoid internal scratches during anodizing. Using a traditional clamping method, similar to what might be used for smaller, lighter parts, would inevitably result in long and deep rack marks inside the cup, significantly detracting from the final appearance of the anodized aluminum. To overcome this, our CNC milling machining process allows us to implement an innovative solution. By creating a threaded hole at the bottom and using a screw anodizing rack, we ensure stability without damaging the cup’s interior.
Threaded Hole at the Bottom

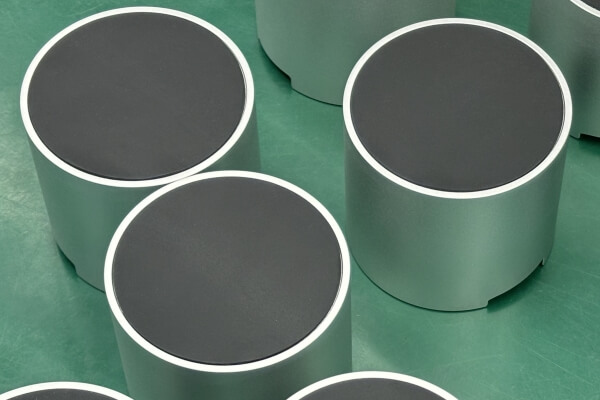

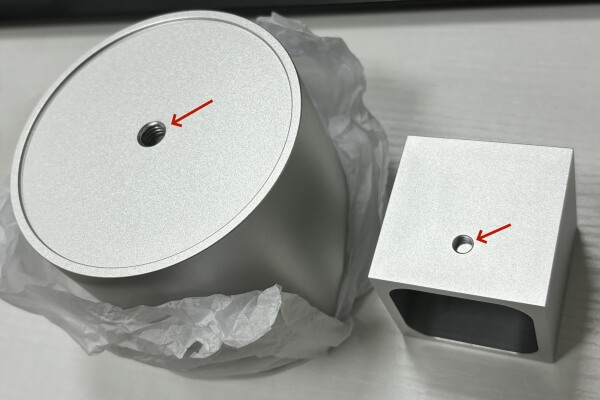

Making a threaded hole at the bottom of the cup. We then design and customize a screw anodizing rack that securely fastens into this threaded hole. This method ensures that the entire interior surface of the cup remains untouched and pristine during the anodizing process, effectively avoiding any scratches inside the cup. As an added benefit, once anodized, a silicone anti-slip sticker can be applied to the bottom, not only covering the threaded hole but also enhancing the functionality of the aluminum cup by making it more non-slip.
Side-Threaded Holes for Cups with Handles

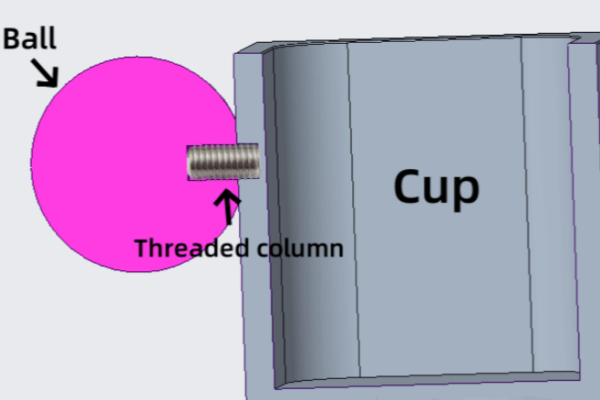

For smaller aluminum cups with handles, where internal marks are undesirable, we can similarly create a threaded hole on the side. This allows us to use machine screws to assemble the cup with its handle after anodizing, further minimizing visible rack marks and preserving the integrity of the anodized aluminum finish.
Racking Techniques for Aluminum Plates

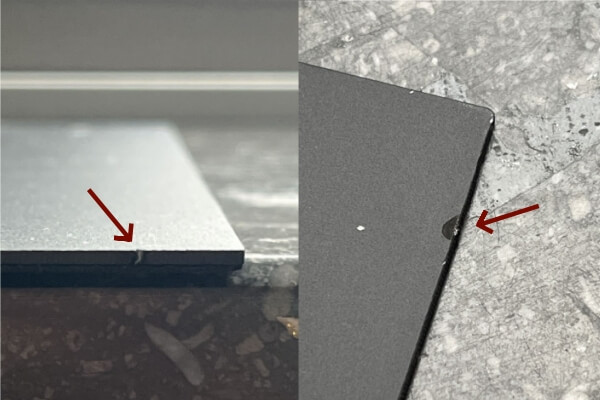

Achieving a clean, unblemished finish on flat aluminum plates during anodizing can be tricky, especially when there are no pre-existing features for racking. Directly clamping the side of an aluminum plate can lead to deformation or partial breakage of the edge, severely damaging the overall appearance of the anodized aluminum.
Reserving Racking Positions During Laser Cutting

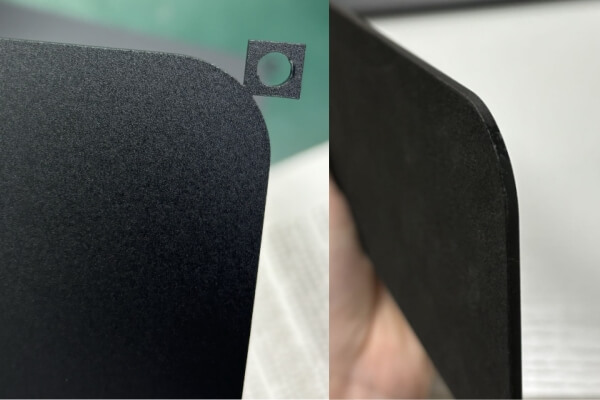

To avoid this, when laser cutting aluminum plates, we reserve a specific racking position for anodizing. This ensures the plate remains stable, preventing edge damage. This dedicated section, often a small tab or corner, acts as the attachment point for the racking fixture during anodizing.
Remove The Racking Positions By CNC Machining
Once the anodizing process is complete and the desired anodized finish is achieved, we then use CNC processing to precisely remove this reserved racking position.
While this method is highly effective, it does result in a small part of white leakage at the edge where the tab was removed. For silver anodizing, this white leakage is often not obvious and blends seamlessly with the natural aluminum color. However, for black anodizing, the white leakage can be more noticeable.
Repair The Leaked Area On Aluminum Parts
In such cases, we can easily rectify this by filling the leaked area with a black paint pen, ensuring a consistent and flawless appearance for the final anodized aluminum product. This method avoids clamping damage, preserving the plate’s appearance in CNC milling machining.
Conclusion
Proper racking is not just a detail; it’s a fundamental aspect of achieving beautiful anodized aluminum parts. Through strategic planning and customized solutions in CNC machining, we ensure superior finishes, free from imperfections, enhancing both aesthetics and durability.
FAQ
Q: Why is racking so important in the anodizing process?
A: Proper racking ensures consistent electrical contact and uniform coating, preventing defects like scratches and uneven finishes on anodized aluminum.
Q: Can all aluminum parts be anodized without visible rack marks?
A: While challenging, innovative solutions like threaded holes or reserved racking positions can significantly minimize or eliminate visible marks on anodized aluminum.
Q: What happens if an aluminum part is not hung correctly during anodizing?
A: Incorrect racking can lead to issues such as uneven coating, trapped air, scratches, or deformation, compromising the quality of the anodized aluminum.
Q: How do you handle racking for oddly shaped or complex aluminum parts?
A: We develop customized racking solutions, often leveraging our CNC milling machining capabilities to create specialized fixtures that perfectly suit the part’s geometry.
